BIGTONE Studio Lux 22, 1*12″ combo, creme tolex NEW


BIGTONE Studio Lux 22, 1*12″ combo, creme tolex NEW

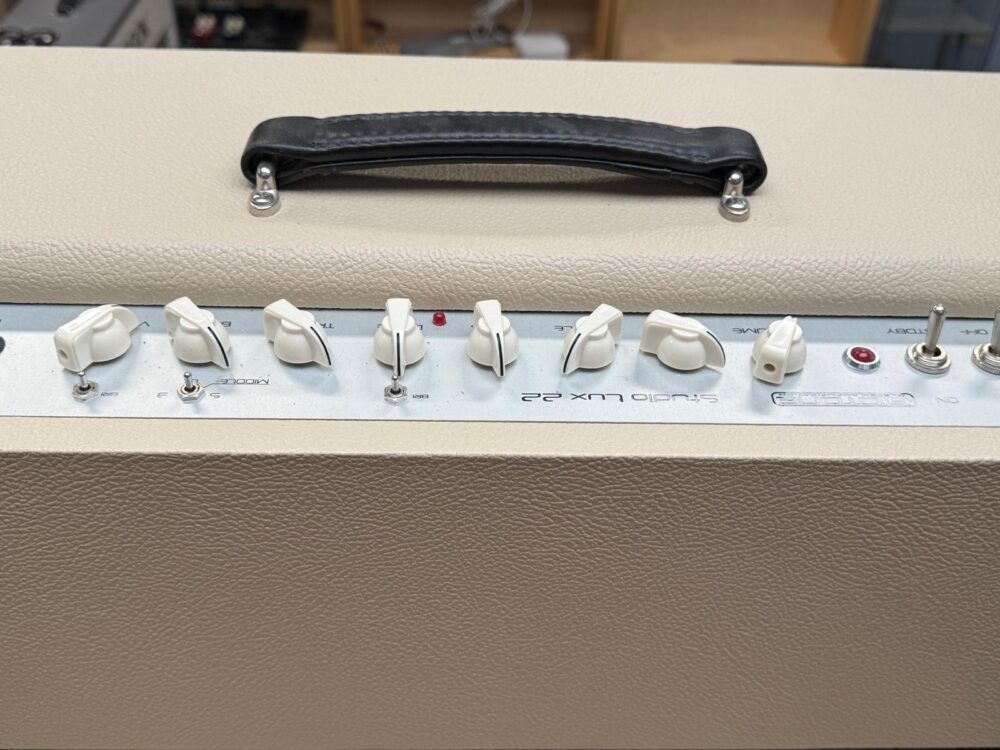

The BIGTONE Studio Lux 22 is aimed to the american blackface tone lovers that also want to enjoy a full tube overdrive sound in the same amp. It's a dual 6V6 based 22W dual channel amp that delivers classic blackface clean sounds on channel 1 and a rich palette of overdrive tones on channel 2. This second channel also has a footswitchable fixed gain boost to offer a total of 3 different sounds from a simple to use front panel.

In stock



The Studio Lux 22 is available both in a lightweight and portable Head and 1×12″ Combo versions.

From pure cleans to powerful overdrives, you’ll find lots of amazing tones inside the Studio Lux. It also exhibites exceptional dynamics to capture the player’s feeling. This amp reacts extremely well with boost and overdrive pedals.

Clean Channel will take you to the world of american cleans up to cranked up blackface tones, depending on how you adjust the gain. There’s a ‘bright’ switch to add that extra bite or attack to your sound, and a very useful 3 position Mids control.

Drive Channel will get you into the low to medium-high gain sounds, also featuring a ‘bold-neutral-bright’ switch. This channel has a very active EQ that lets you go from rock to fussion tones just by changing the EQ settings.

There is an internal fixed Gain Boost available on second channel. This way Channel 2 can go into hard rock high gain tones or liquid leads.

The Power Amp is based on a juicy classic american 22 watt dual 6V6 power amp that you’ll love to push to overdrive to get classic blues-country tones. Thanks to the Deep and Presence rear controls the response can go from more focused to a wider spectrum.

Our amps all feature heavy-duty PCBs (2.4mm thick, double sided 70um copper) and oversized high quality components to ensure a problem-free life, along with Heyboer mains and output transformers and choke, and selected tubes for maximum tone from the first day of use. There is no need to hunt for improvement tweaks after purchase – extensive R&D in the lab and on stage means we can confidently say we have already done that for you.

Read the specifications below to learn more about this beast.

warehouse WGS, classic 80 speaker

SPECIFICATIONS*: 22W, 2 Channels. CH1 channel featuring volume, bass and treble controls, and bright and mids switch. CH2 channel featuring gain, bass, middle, treble and volume controls, and bright-neutral-bold switch. Footswitchable Gain boost available on Drive channel. Serial FX Loop designed for maximum transparency, with selectable +4dBu/-10dBV level. Rear panel featuring Deep and Presence controls for adjusting the overall response. 3x ECC83/12AX7 preamp tubes. 2x 6V6 power tubes. Heyboer custom transformers and choke. Dual speaker output jacks with impedance selector for 4-8-16 Ohm. 2 stereo jacks for external switchable features control, also with rear onboard switches for direct selection without footswitch or switching system connected to the amp. Footswitchable features: CH1/CH2 channel, Gain Boost and FX Loop On/Bypass. Available for 110-120-220-240 Mains Voltage. Please advise when ordering!!! Custom finish available without price increase (contact us for availability). Head Dimensions: 50(W)x24(H)x21(D)cm. Height includes rubber feet & handle. Head Weight: 9.95kg. 1x12" Combo Dimensions: 61(W)x51(H)x28(D)cm. Height includes rubber feet and handle. 1x12" Combo Weight: around 18kg (depending on the selected speaker).
