Replicator d’luxe

Replicator d’luxe

495,00

The Replicator D’Luxe is a sum up from all the knowledge, we have built up over the years, making Tape delays.

It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics has been tuned to perfection.

In stock

Category:

Description

HANDCRAFTED IN DENMARK
Multiple Playback-heads for true analog tape echoes
One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
Tap tempo for Long Head and half the time for the short head
True Bypass switching with a gold plated relay
New motor suspension with belt drive, for reduced noise operation
New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
All analog signal path from input to output

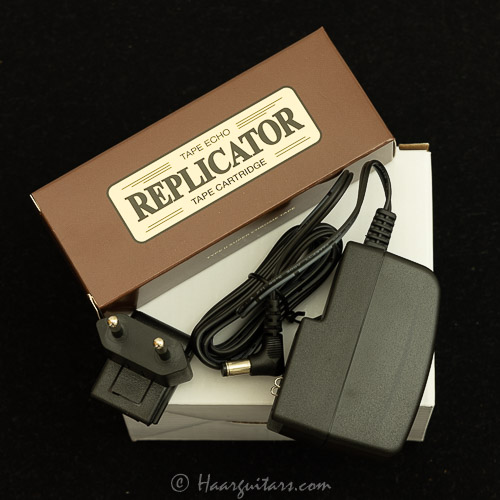

Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included

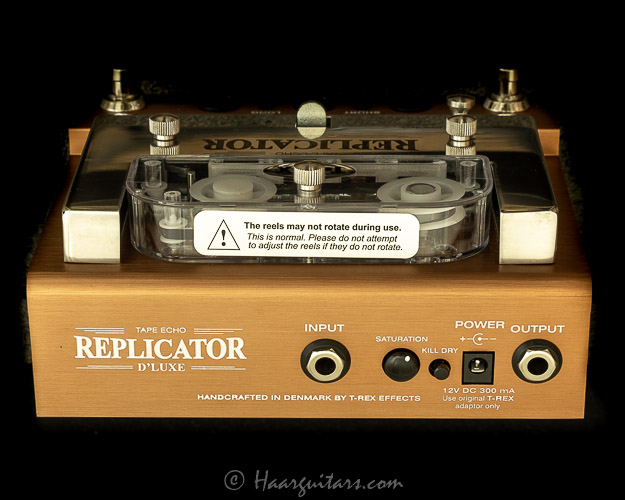

Input impedance @ 1KHz: > 500K ohm Output impedance @ 1KHz: >1K ohm Power supply (included): 12V DC, center negative Current draw @ 12V DC: 300mA Maximum input signal V p-p: 8,7V p-p (12dBu) External connectors: input, output, DC inlet Controls: delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo Pedal size incl. knobs (W x H x D): 80 x 174 x 175 mm / 3,15 x 6,85 x 6,89 in Weight excl. packaging: 1,50 kg / 52,91 oz
